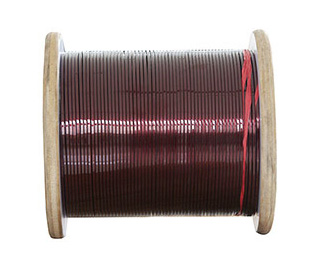

Enameled aluminum magnet flat rectangular wire strips
Class 130/155/180/200/220 enamelled aluminum(copper) rectangular and square wire
Product Introduction:
Enameled aluminum (copper) magnet round rectangular wires strips is made of oxygen free (copper) rod or electrical round aluminum rod by a certain size of the die drawing or extrusion of the wire, the insulation paint through many times of the winding wire. Mainly used in winding of transformers, motors, generators, and various electrical devices.
Product Range:
- Wires strip thickness a: 0.80–7.0mm
- Wire strip width b: 2.0–16.0mm
- Recommended width ratio of conductor: 1.4<b/a<8.0
- Temperature Class(℃) : 180, 200, 220
- Standard : IEC60317-0-2,IEC60317-29 MW36-A
- Bobbin : 30/50kg wooden spool,plastic spool,we can customize the length according to customer demand
- Special size can be made with discuss.
Feature :
- High thermal class
- High chemical stability
- Good mechanical properties
- High breakdown voltage, good formability
- Application Of Enameled Square Aluminum Wire : Transformers, generators, refrigeration systems, class C generators, UPS power supplys, electronic transformers
Features of Enameled Round Aluminum Wire:
- Low density allows coil weight reduction
- Rapid heat dissipation
- High cut through
- Excellent heat shock
- Perfect breakdown voltage
- High heat resistance
- Good solvent resistance
